Step 7: Drill pilot holes

Drill pilot holes «»

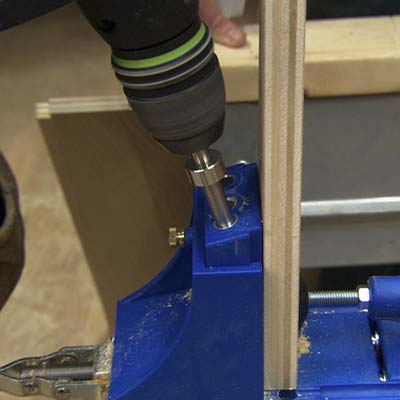

Clamp a pocket-hole jig to the backside of the toe kick. Using a drill/driver fitted with the special bit and depth-stop collar that come with the jig, make two angled pilot holes in either end of the toe kick.

Drill similar pocket holes into the back of the upper rail (2 holes on each end), the top face of the sub-top (5 holes across each side) and the underside of the bottom piece (5 holes across each side).
Next

Related Content

Ask TOH users about Storage
Discuss

Contribute to This Story Below

Add Comment

    More in Living Spaces

    Tools List

    Close
    • 100-foot tape measure
      Measuring tape
    • circular saw
      Circular saw and guide
    • hand clamps
      Spring clamps for holding saw guide
    • plunge router
      Plunge router fitted with 5/8-inch-diameter guide bushing, ball-bearing-piloted rabbeting router bit, and ¼-inch-diameter straight-cutting router bit
    • speed square
      Speed square
    • hammer
      Hammer
    • jigsaw
      Jigsaw for cutting arches in toekick and side pieces
    • iron
      Iron for adhering iron-on birch veneer edge banding to plywood
    • j-roller
      J-roller for adhering iron-on veneer
    • Double-sided Veneer Trimmer
      Double-sided veneer trimmer
    • utility knife
      Utility knife
    • drill
      Drill/driver fitted with 5/8-inch spade bit
    • pocket hole jig
      Pocket-hole jig for boring angled holes for pocket screws
    • miter saw
      Miter saw (or miter box with hand saw)
    • paintbrush
      Paint brush

    Shopping List

    Close
    1. 3/4-inch cabinet-grade birch veneer plywood for the case and shelves. One 4x8 sheet will make the whole bookcase

    2. 1/4-inch-thick birch veneer plywood for the backing. One half-sheet will cover the back of the bookcase.

    3. 8-foot piece of pine bed molding to trim around bookcase top.

    4. 1¼-inch pan-head pocket-hole screws

    5. 6d finish nails to attach the bed molding.

    6. 3d box nails for fastening the plywood back.

    7. 1/4-inch-thick x 3-inch-wide hardboard strip used to mark arches onto toekick and side pieces.

    8. 7/8-inch-wide heat-activated birch veneer edge banding, used to conceal edges of plywood.

    9. 1x pine, for making hole-routing template for shelf pegs.

    10. 8 metal shelf pegs

    11. 120-grit sandpaper

    12. Primer and paint,     or stain and varnish
