Step 3: Assemble 2x8 beams

Step 3: Assemble three 2x8 beams «»

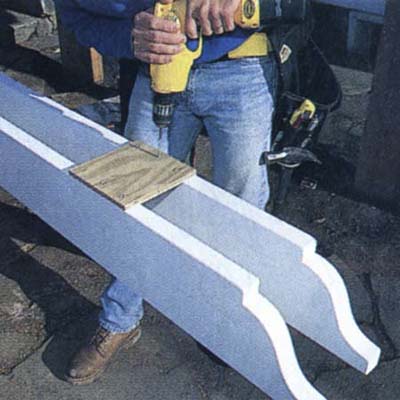

Assemble the three pairs of double 2x8 beams before lifting them onto the top of the posts. For each pair, cut two 7½-inch-square pieces of ½-inch-thick pressure-treated plywood. Screw the plywood plates to the bottom edge of two 2x8s with galvanized decking screws. Carefully position the plywood plates so they align with the posts.
Next

Related Content

Ask TOH users about Outdoor Structures
Discuss

Contribute to This Story Below

Add Comment

    More in Landscaping

    Tools List

    Close
    • bit auger
      Auger bit
    • drill
      Drill
    • 30-foot tape measure
      Tape measure
    • finish hammer
      Hammer
    • router
      Router

    Shopping List

    Close
    1. 8x8 POSTS

    6 required



    2. 2x8 CROSS BEAMS

    6 required



    3. 2x6 RAFTERS

    7 required



    4. 1x2 LATTICE STRIPS

    9 required



    5. 1x3 TRIM

    applied around tops of each post



    6. 3/4-INCH-DIAMETER X 42-INCH-LONG GALVANIZED-METAL PIPE

    used to hold posts in place



    7. PRIMER AND PAINT OR STAIN

    8. 2- AND 3-INCH DECKING SCREWS

    9. CONCRETE MIX

    for creating poured-concrete footings



    10. 2 1/2-INCH GALVANIZED FINISHING NAILS

    used to attach 1x3 trim to posts



    11. WOOD PRESERVATIVE

    used to treat the ends of the posts



    12. 1/2-INCH PRESSURE-TREATED PLYWOOD

    cut into 7 [FRACTION 1/2]-inch-square fastening plates
