Step 7: Create a backsplash

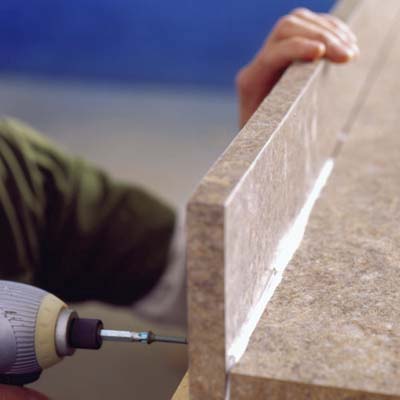

Drive screws through the pilot holes to secure the backsplash
Photo: Kolin Smith
«»
To make a backsplash, cut a piece of particleboard 5½inches wide and as long as the counter. Do not double up the wood. Laminate this piece, adhering first the short sides, then the wide face, and finally the top.

Using a caulk gun, run a bead of clear caulk along the bottom part of the face of the backsplash. Align it with the back side of the countertop surface, making sure the bottom edges are flush. Using a drill/driver fitted with a 1½-inch bit, create pilot holes through the backsplash and into the edge of the countertop every 6 to 8 inches. Drive 1 5/8-inch screws through the pilot holes. With a wet finger, smooth any caulk that oozes out.
Next

Related Content

Ask TOH users about Kitchen Countertops
Discuss

Contribute to This Story Below

Add Comment

    More in Kitchen

    Tools List

    Close
      Okay, people, give us a little room to work here. Because we'd like to fold the laundry without having the delicates drop off the dryer into the dust bunnies, and we sure could use a place to lay out the parts of those "some assembly required" projects. Please, we beg of you, give us a proper countertop.

      We're not holding out for granite—save that for the dream kitchen. All we really need is some smooth, clean laminate, a surface that can serve its purpose simply and with style. Laminate is inexpensive, comes in hundreds of designs (some to mimic that out-of-the-budget granite), and when glued onto particleboard makes a rather convenient work surface. As This Old House technical editor Mark Powers shows on the following pages, it's easy to turn a disorganized garage, mudroom, or shed into a multifunctional workroom in one quick weekend. With that kind of setup, we'd really be able to spread out and get something done.

      Crystalline Dune laminate, about $3 per square foot, WilsonArt.

      Cabinets from Omega Cabinetry, through Jilco Window Corp.

    Shopping List

    Close
    1. LAMINATE
    Order at home centers or through kitchen designers (allow two weeks for delivery). Laminates range from about $2 to $5 per square foot, but they come in 4-by-8- or 5-by-12-foot sheets. Because you want as few seams as possible, choose a size that will yield the longest uninterrupted pieces, taking into account not only the surface of the counter but the sides and backsplash as well.

    2. 3/4-INCH PARTICLEBOARD
    to form the substrate to which you adhere the laminate. A 4-by-8-foot sheet should be wide enough to create all the pieces needed for one standard 25-inch-deep countertop section and backsplash, up to 8 feet long.

    3. WATER-RESISTANT WOOD GLUE
    to glue together pieces of the substrate. Look for PVA wood glues rated Type II. 4. PRIMER
    to protect the particleboard from moisture.

    5. NEOPRENE CONTACT CEMENT
    Look for a water-based or low-VOC product rather than a solvent-based one, which will dry faster but can only be used in a well-ventilated area. One gallon will cover about 250 to 300 square feet.

    6. 3/4-INCH DOWELS
    to hold the laminate off the particleboard before adhesion. Plan on one 3-foot-long dowel for every 12 inches of countertop. Clean scrap wood will also work.

    7. CLEAR LATEX CAULK
    to seal and waterproof seams between two countertop pieces and to seal edges where the countertop meets a wall.

    8. 11/4-INCH and 15/8-INCH DECK SCREWS
    to assemble the substrate and to attach the countertop to the cabinets.
