Step 5: Mark hinge positions on casing

Marking hinge postings
Photo: Kolin Smith
«»

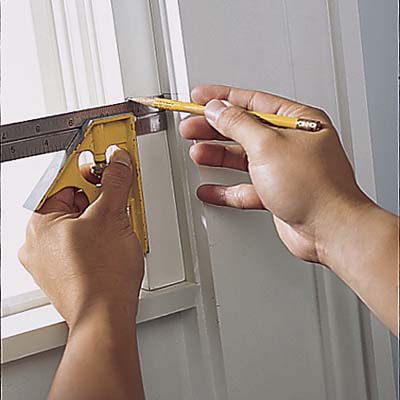

Using a combination square, transfer the mark on the casing to a line on the jamb and then the hanging strip. This mark will show you where to line up the hinges on the window.

Tip: When marking the hinge locations, use the top of the knuckle, not the pin, as a guide. This will correspond to the top of the hinge plate.
Next

Related Content

Ask TOH users about Windows
Discuss

Contribute to This Story Below

Add Comment

    More in House Exterior

    Tools List

    Close
    • drill
      Drill/driver with 1/8-inch drill bit and Phillips-head driver bit
    • combination square
      Combination square
    • folding ruler
      Folding rule
    • Phillips screwdriver
      Phillips-head screwdriver
    • self-centering bit
      Self-centering bit,
      also known as a Vix bit
    • square-head bit
      Square-head screwdriver bit,
      for fastening hanging strips to window jamb

    Shopping List

    Close
    1. SHUTTERS

    in most cases, must be custom-ordered. Measure each window separately.



    2. SHIMS

    used to center and hold the shutters in the window opening while marking the hinge locations.
