Overview

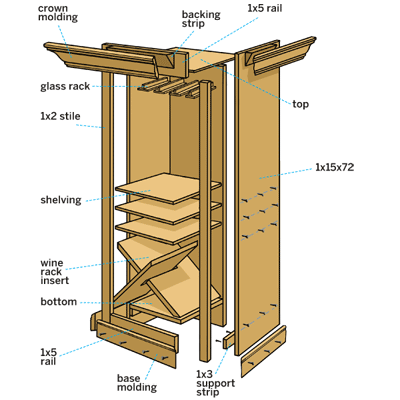

cocktail hutch overview
Illustration: Doug Adams
«»
Download fun extras including drink pairings to go with this project.

CUT LIST TO BUILD A COCKTAIL HUTCH
1x15 box sides: 2 @ 72 inches
1x15 shelves: 4 @ 18 inches
1x15 wine-rack insert pieces 2 @ 26½ inches between the long points of their 45-degree beveled ends.
1x3 support strips: 2 @ 14½ inches
1x2 stiles: 2 @ 72 inches
1x5 rails: 2 @ 16½ inches
⅝-inch square dowel for the glass rack nailing strips: 4 @ 15 inches
⅜x3-inch lattice strip for the glass rack: 4 @ 15 inches
Baseboard: Custom miter 3 to size.
Crown molding: Custom miter 3 to size.
2x4 backing strips: Custom rip 3 and cut them to size.
5mm lauan back: 1 @ 72 by 19¼ inches
Next

Related Content

Ask TOH users about Cabinets & Shelving
Discuss

Contribute to This Story Below

Add Comment

    More in Interior

    Tools List

    Close
    • miter saw
      Miter saw
    • circular saw
      Circular saw
    • jigsaw
      Jigsaw
    • speed square
      Speed Square
    • combination square
      Combination square
    • drill
      Drill/driver
    • pneumatic brad nailer
      Pneumatic nail gun

    Shopping List

    Close
    1. 1x15 edge-glued shelving. Get four 6-foot boards and one 3-foot board to make the sides, top, bottom, shelves, and wine-rack insert.

      2. 1x3 to create support strips for the bottom board.

      3. ⅝-inch square dowels to make the glass rack. Get two 3-foot lengths.

      4. ⅜x3 lattice strips to make the glass rack. Get two 3-foot lengths.

      5. 3¼-inch baseboard molding: Get a 6-foot length.

      6. 3⅝x9/16-inch crown molding: Get a 6-foot length.  7. 2x4 to make the backing strips for the crown molding

      8. 1x2 to make the face-frame stiles: Get two 6-foot boards in clear pine.

      9. 1x5 to make the face-frame rails: Get at least 3 feet in clear pine.

      10. 5mm lauan for the backing. Get one 4x8 sheet.

      11. 1½-inch brad nails

      12. ⅝-inch brad nails

      13. 1¼-inch drywall screws
