Overview

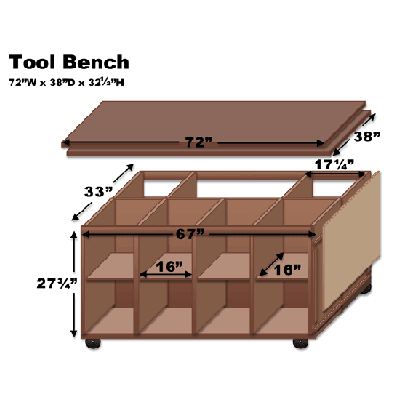

an exploded view illustration of a tool bench
Illustration: Jennifer Stimpson
«»
Cut List

¾-inch plywood top: two @ 38 by 72 inches
-inch plywood sides of boxes: nine @ 16 inches by 27¾
½-inch plywood back of large boxes: one @ 27¾ by 67 inches
-inch plywood bottom of large box: one @ 16 by 67 inches
½-inch plywood back of small boxes: two @ 17 ¼ by 27¾ inches
-inch plywood bottom of small boxes: two @ 16 by 17¼ inches
½-inch plywood shelves: six @ 16 by 16½ inches (if using cleats, cut shelves to 16 inches by 16 inches)
• 1x2 horizontal filler strips: four @ 33 inches
• 1x2 vertical filler strips: four @ 22 inches
• 1x2 plywood rails: four @ 67 inches
Ask TOH users about Storage

Contribute to This Story Below

    Tools List

    • drill
      Drill/Driver fitted with a countersink bit
    • circular saw
      Circular saw
    • router
      Router with ½inch straight bit

    Shopping List

    1. Locking casters; There should be 6 in all.

    2. Wood glue

    3. ½-inch plywood for backs and shelves.

    4. Pegboard

    5. ¾-inch plywood for work surface.

    6. 1x2 filler strip for furring out the pegboard.7. -inch plywood for bottoms and walls.

    8. Power strip suitable for workshop use.

    9. 1½-inch deck screws

    10. ½-inch straight router bit

    11. Pegboard hooks

    12. 5/16-inch carriage bolt, washer and nuts
