Overview

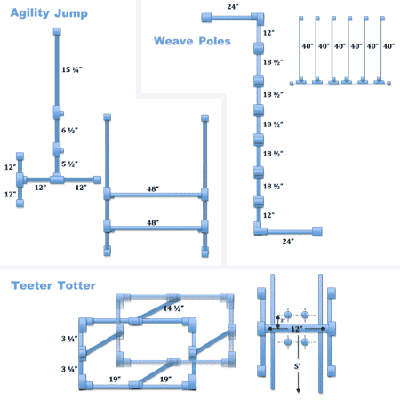

cut diagrams of three excise units of a pet agility course
Illustration: Jennifer Stimpson
«»
Clean the printing off the pipes using clear PVC cleaner (optional). Mark each section of pipe to length using the cut list below. Cut all the sections using a pull saw. Write the length of each section at the end of the pipe where the marking will later be covered by a connector or end cap.

Cut List
(All 1½-inch pipe, unless otherwise noted)

Agility Jump (download plan here)
8 @ 12 inches
2 @ 48 inches
2 @ 5½ inches
2 @ 6½ inches
2 @ 15¼ inches

Weave Poles (download plan here)
4 @ 18½ inches
2 @ 12 inches
2 @ 24 inches
6 @ 40 inches

Teeter-Totter (download plan here)
8 @ 3¼ inches
8 @ 19 inches
4 @ 14½ inches
4 @ 12-inch
1 @ 12 inches (2-inch pipe)

Plan to make one of these? Show us the finished project and you could be featured in This Old House magazine
Next
Ask TOH users about Pets
Discuss

Contribute to This Story Below

Add Comment

    More in Living Spaces

    Tools List

    Close
    • pvc saw
      Pull Saw
    • drill
      Drill/Driver
      with 1/16-inch bit, 3/8-inch bit, 5/8-inch paddle bit
    • combination square
      Combination Square
    • hammer
      Hammer
    • block wood
      Wood Block

    Shopping List

    Close
    1 ½-inch schedule 40 PVC pipe. Get 100 feet.

    1 ½-inch PVC tees. Get 22.

    1 ½-inch PVC elbows. Get 10.

    1 ½-inch PVC end caps. Get 16.

    2-inch PVC. Get 12 inches.

    1x12 laminated shelving board. Get one 8-foot board

    2-inch U-strap. Get two.

    1½-inch 3/8-inch flathead bolts. Get four.

    3/8-inch washers. Get 16.

    3/8-inch locknuts. Get four.3/4-inch metal strapping

    3/4-inch sheet metal screws

    1-inch drywall screws

    Clear PVC cleaner

    Electrical tape in red, blue, and yellow

    Painter's tape

    Exterior primer

    Exterior flat paint in yellow

    Antiskid additive

    3 pounds of gravel
