Overview

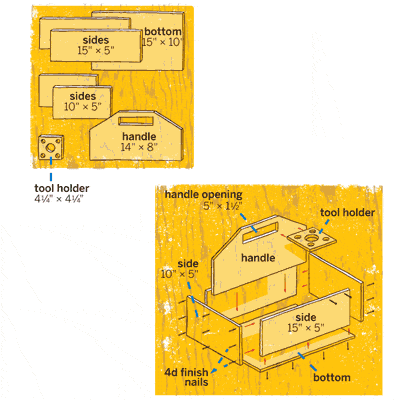

building a toolbox diagram
Illustration: Carl Wiens
«»
There are seven parts to this toolbox, and they will all fit on one 2x4-foot sheet of plywood. If you line up parts adjacent to one another so that they have a common cutline, make sure you account for the -inch kerf that will be eaten up by the saw blade with each cut.

Birch veneer plywood is the best choice as a material for this project because it’s strong, has a smooth face, and takes stains or paints well. Construction plywood will also work, but the face will not be as smooth.
Ask TOH users about Workshop Accessories

Contribute to This Story Below

    Tools List

    • 16-foot tape measure
      Tape measure
    • hammer with nailset
      Hammer and nailset
    • combination square
      Combination square
    • hand clamps
      Spring clamps
    • jigsaw
      Jigsaw, circular saw, or handsaw
    • drill
      Drill/driver with -inch drill bit and ½- and 1-inch spade bits
    • safety glasses
      Safety glasses
    • random orbit sander
      Random-orbit sander or sanding block
    • bar clamps
      Bar clamps
    • putty knife
      Putty knife
    • paintbrush
      Paintbrush
    • straightedge guide
      Straightedge saw guide

    Shopping List

    1. 2x4 foot piece of ½-inch birch veneer plywood

    2. Plastic jars
    (optional: for keeping nails and screws organized in the toolbox)

    3. 120-grit sandpaper

    4. Stainable wood glue

    5. Clean Rag6. 4d finish nails

    7. Stainable wood putty

    8. Water-based stain

    9. Latex gloves

    10. Hockey-stick tape

    11. Nail-on furniture glides
    (optional)
