Electrical Upgrades for DIYers

By: Joseph Truini (Page 1 of 2)

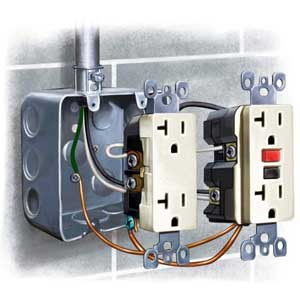

Illustrations: Trevor Johnson & Paul Perreault

Illustrations: Trevor Johnson & Paul Perreault

Illustrations: Trevor Johnson & Paul Perreault

photos: Geoffrey Gross

1. In the attic, bore a hole through the top wall plate, then use a snake to pull up a nonmetallic sheathed cable from the new wall switch location on the first floor.

photos: Geoffrey Gross

2. Bore a large hole through the exterior house wall at the desired location of the floodlight. Thread the cable through the holes in the attic floor joists, up the wall and out the light fixture hole.

photos: Geoffrey Gross

3. Screw the outlet box on the floodlight to the house, then connect the light fixture to the cable. Secure the bare copper wire of the cable under the grounding screw inside the box.

photos: Geoffrey Gross

4. After pulling the existing outlet from its box, snake a new cable down from the wall switch hole above. The cable descending from the floodlight also comes into the switch hole.

photos: Geoffrey Gross

5. Install a single-pole switch ($1) to operate the floodlight. Secure the black wires and grounding wires to the switch; join the two white wires with a twist-on wire connector.
