Proper Insulation

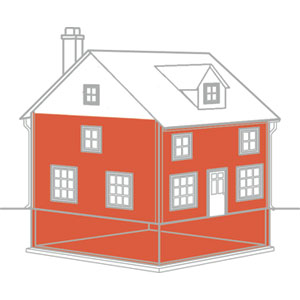

insulation diagram Illustration: Ian Worpole

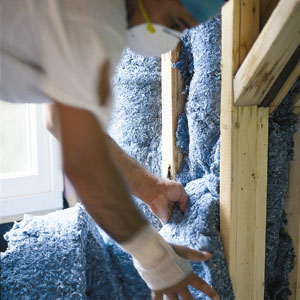

recycled denim as insulation Photo: Burt Welleford

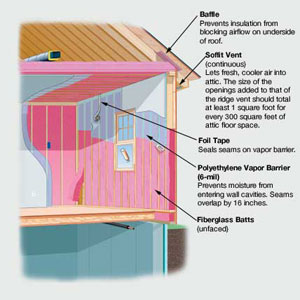

roof insulation diagram Illustration: Ian Worpole

insulation diagram Enlarge this image Illustration: Ian Worpole

roof insulation diagram Illustration: Ian Worpole

insulation diagram Enlarge this image Illustration: Ian Worpole

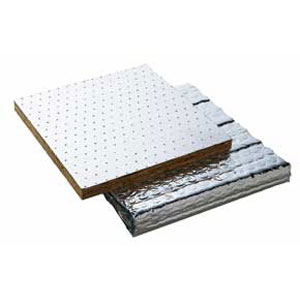

radiant barriers reflect thermal radiation Photo: David Hamsley

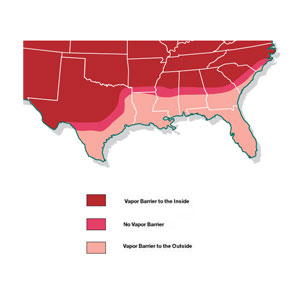

Vapor blocker diagram for various climates Illustration: Ian Worpole

Insulation options diagram Photo: David Hamsley

Browse Images

How-To Video

Browse More

How to Insulate an Attic

In this how-to video, This Old House general contractor Tom Silva and host Kevin O'Connor demonstrate the proper way to insulate an attic

On Newsstands Now



In the Magazine


Easy Upgrades That Say Welcome Home

overall kitchen remodel how to build a bar bedroom remodel this old house editor Scott Omelianuk desk and bookshelf

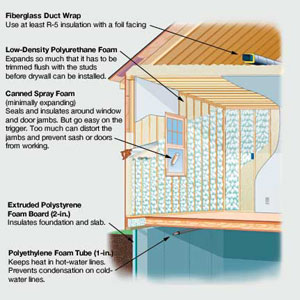

Foam Insulation

As far as Tom Silva is concerned, low-density polyurethane spray foam is the insulation technology to beat. Consider its advantages: It forms a lock-tight bond with studs and sheathing that blocks all air movement, it flexes enough to accommodate seasonal wood movement, and it retards (but doesn't halt) moisture passage. While spray foam is expensive, its installation costs are offset in the long run by lower heating and cooling costs.


Insulating Cathedral Ceilings
When Tom insulates a cathedral ceiling or a finished attic, he also turns to foam. Sprayed against the underside of the roof deck, it seals against air movement, eliminating the need for a vapor barrier or ventilation. But its open-cell structure still allows moisture to escape.

Page:
Previous
1
2
3
4
5
6
7
Next
Article: Mother Nature's Insulation Test
