1. CUT: Using a utility knife, score the entire length of the damaged clapboard from end to end, about halfway up from its bottom, or butt, edge. Don't slice all the way through the board, or you may cut the builder's felt underneath.
2. PRY: To break loose the lower half of the damaged piece, start at one end and gently tap a small pry bar underneath the butt edge, next to a nail. Pull the bar toward you, don't push it, so you don't mar or crack the neighboring clapboards.
3. SNAP: Work the pry bar along the butt edge until the lower half breaks off, preferably in one length. (It may take more than one pass.) If this piece remains intact, save it as a template for sizing the replacement. Leave the upper piece in place for now. Thump the exposed sheathing to see if it's sound. If not, cut out and patch any soft spots before continuing.
4. REMOVE THE BOTTOM NAILS: Use a hammer claw or pry bar to pull any of the butt-edge nails that remain embedded in the wall. As you pull each nail, keep the hammer head or pry bar horizontal to avoid cracking the siding below.
5. POP THE TOP NAILS: The butt-edge nails in the siding above the patch also need to come out. Tap the pry bar up under the undamaged siding at each nail shaft, then push the bar gently. With luck, the nails will pull out a bit so that when you tap the board back the nailheads will pop out just enough to get the pry bar under them. The top half of the damaged piece will fall out when all these nails are pulled.
6. CUT THE STUBBORN NAILS: If the top nails won't budge, slip a hacksaw blade under the siding and cut them flush with the sheathing. Orient the blade's teeth to cut on the push stroke to reduce vibration and the risk of cracking the wood.

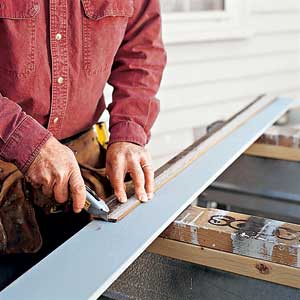

7. MARK AND CUT: Place a full-length piece of the damaged siding on the face of the replacement. Line up the ends, and, using the old piece as a guide, mark the new clapboard with a utility knife. Score the cut line with the utility knife, guided by a square. (Scoring prevents the wood from chipping when you cut it.) With a handsaw, cut the new piece of siding on the waste side of the line. Angle the blade slightly to cut a bevel toward the side that will be against the house. This leaves a little extra space for caulk.
8. BACK-CAULK THE JOINTS: Lay a thick bead of caulk on both ends of the space where the new board will go. The bead should cover the end grain of the neighboring clapboard and the gap between its back side and the sheathing. In this application, Tom favors a paintable acrylic latex caulk.
9. FASTEN THE NEW PIECE: Push the thin edge of the new clapboard up at least an inch underneath the boards above, then line up its butt edge flush with its neighbors'. Start nailing at the ends; each nail should be about 3⁄4 inch up from the butt edge and line up vertically with those in other clapboards (to prevent splits, keep nails at least 11⁄2 inches from the end joint). Drive each nail in at a slight angle so it doesn't land in an old nail hole in the sheathing. Pound nailheads flush with the face of the clapboard; ease up on the last couple of hits so you don't dent the wood. Do the same to the old boards above the replacement (below). Finish by dabbing caulk into the nail holes and wiping away any caulk that oozes from the joint. The new piece is now ready for paint.
